SPECIFICATIONS

Brand Name: MINESPEED

Choice: yes

High-concerned chemical: None

Item Height: 6

Item Length: 11

Item Weight: 5.2

Item Width: 10

Material: PC flame retardant+pure copper

Model Name: YC102905-BL+YC102906-BL

Origin: Mainland China

Product Type: Switches and accessories

feature 1: Battery Disconnect Switch

feature 2: 12V 240A Kill Switch

feature 3: Anti Theft

feature 4: Led Voltage Display Anti Theft

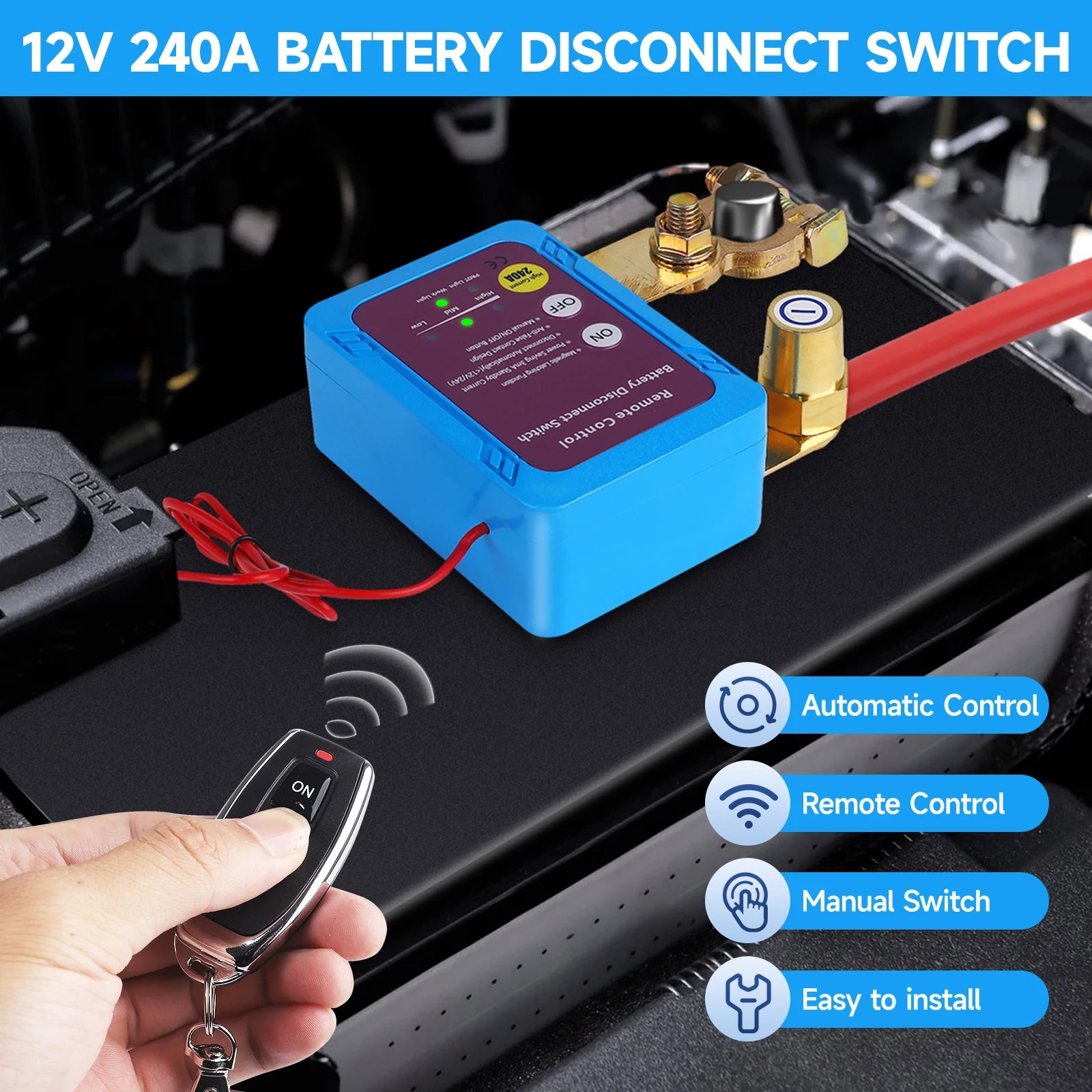

Remote Battery Disconnect Switch 12v 240A Upgrade Smart Voltage Prevent Battery Drain Kill Switch Anti-Theft for CarTruck RV

Specifications:
Voltage Rating: 12V/24V
Current Rating: 240A
Instantaneous current: 1000A for 3 seconds
Standby Current: 0.001A
Operating Temperature: -20℃-90 ℃
Operation Mode ON-OFF
Operating Voltage 12 Volts
Contact Type Normally Open
Connector Type Plug In
About this item:
Specifications: Battery disconnect switch rated current: 240A, rated voltage: 12V, standby power consumption: 1mA, power-off threshold: 11.8V±0.2V, instantaneous current: 1000A for 3 seconds
Magnetic Latching Function: This kill switch for car uses a new type of relay that controls circuit disconnection and cut-off by magnetic principle, with a standby current of 1mA, which is more energy-saving

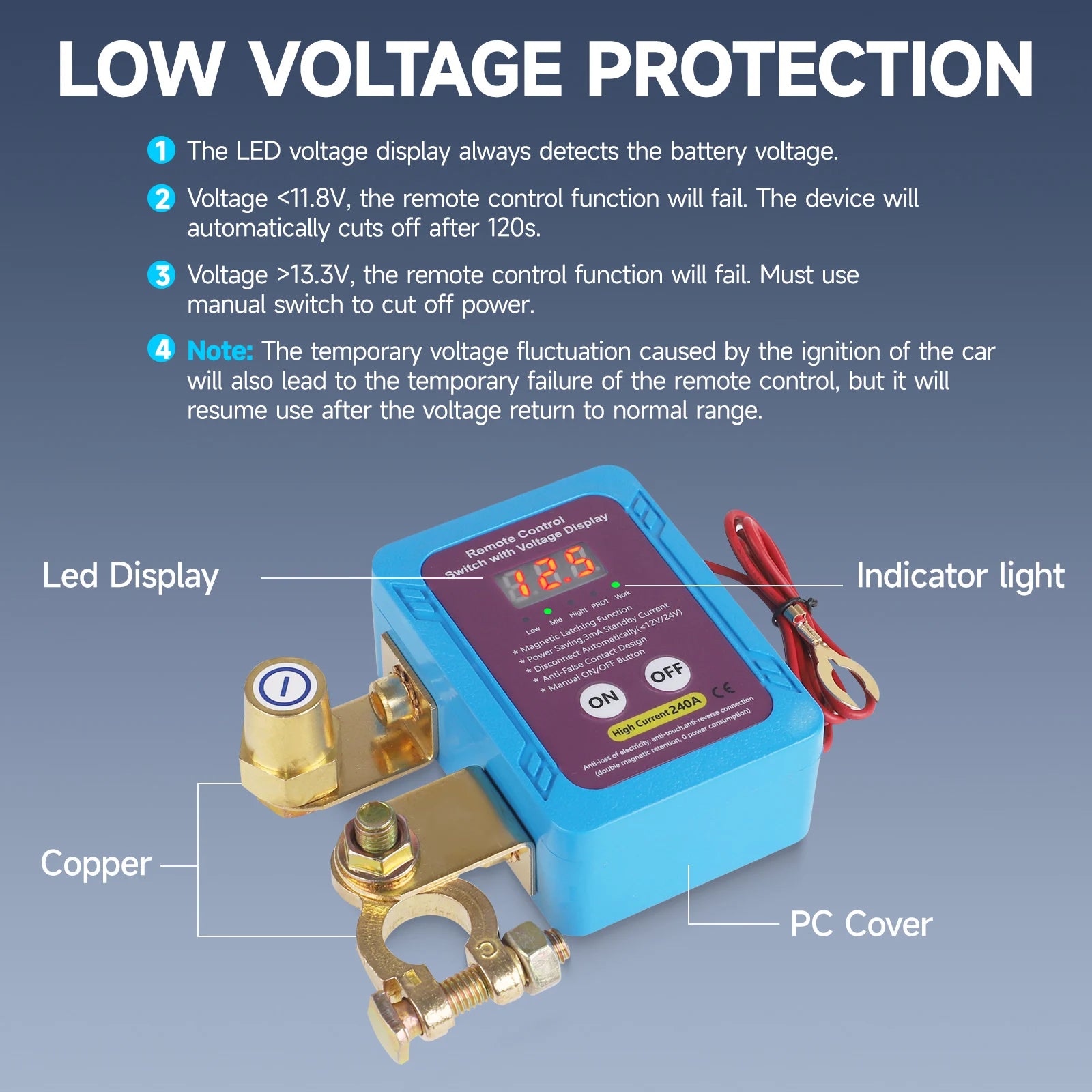

Automatic Cut Off: If the voltage is lower than 11.8V, the remote kill switch will automatically cut off the power supply after 120s to save electricity, if the voltage is higher than 13.2V, the remote control will be disabled to prevent accidental action to shut off the power while driving, and the power supply can only be controlled by the button on the switch

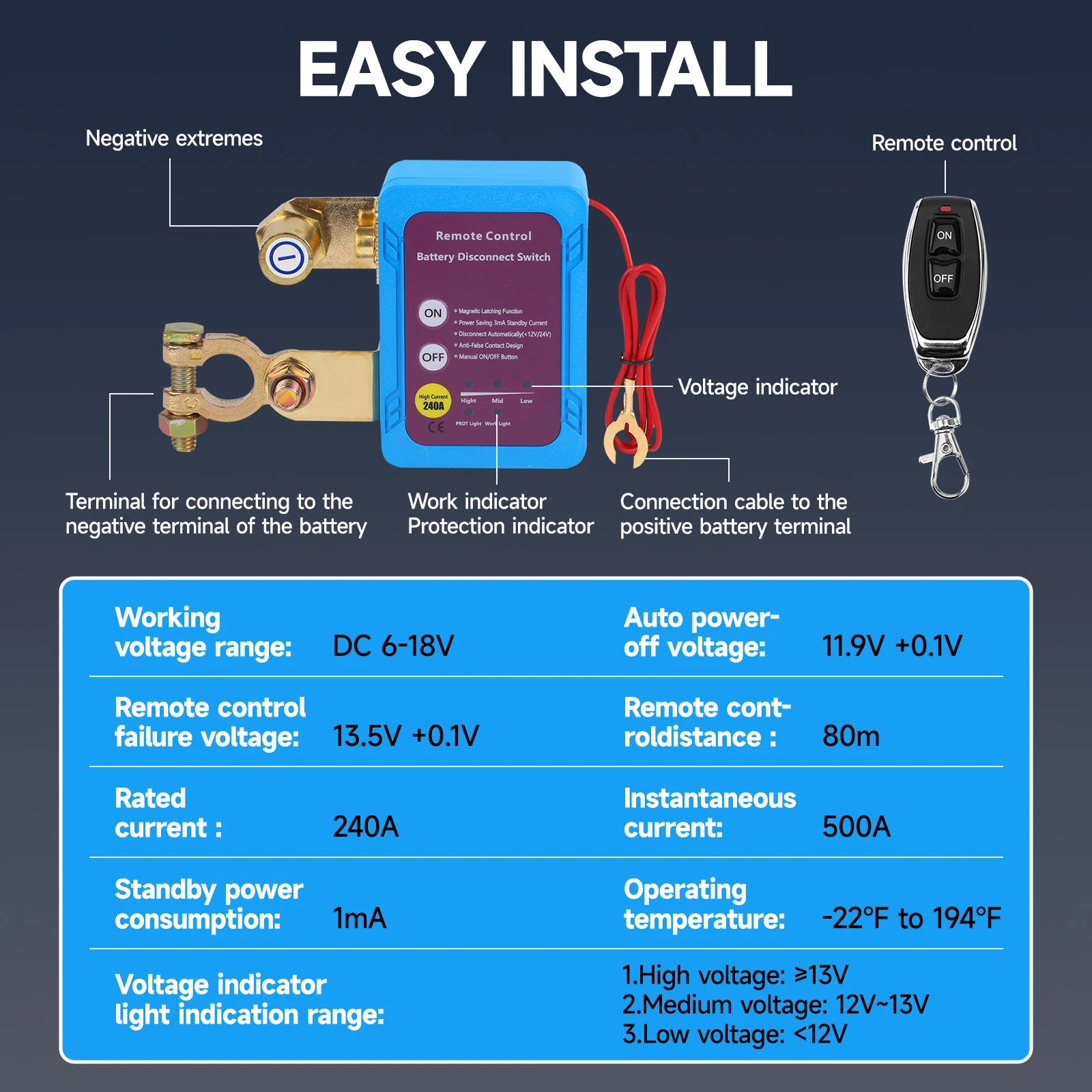

Easy Installation: The power shut off switch uses a negative connection to ensure stable performance. Please remember to turn off the power before installation
Protect the Battery: Using this car battery kill switch can avoid power consumption due to long-term parking, good point of electronic equipment, line aging, forgetting to turn off the light, etc. It can effectively protect and prolong the life of car battery
Battery Shut Off Switch
Application:
Long-term parking, power consumption of electronic devices, line aging, forgetting to turn off lights, etc. Disconnect Switches can solve the power consumption caused by such problems, and can extend the battery power and service life of cars.

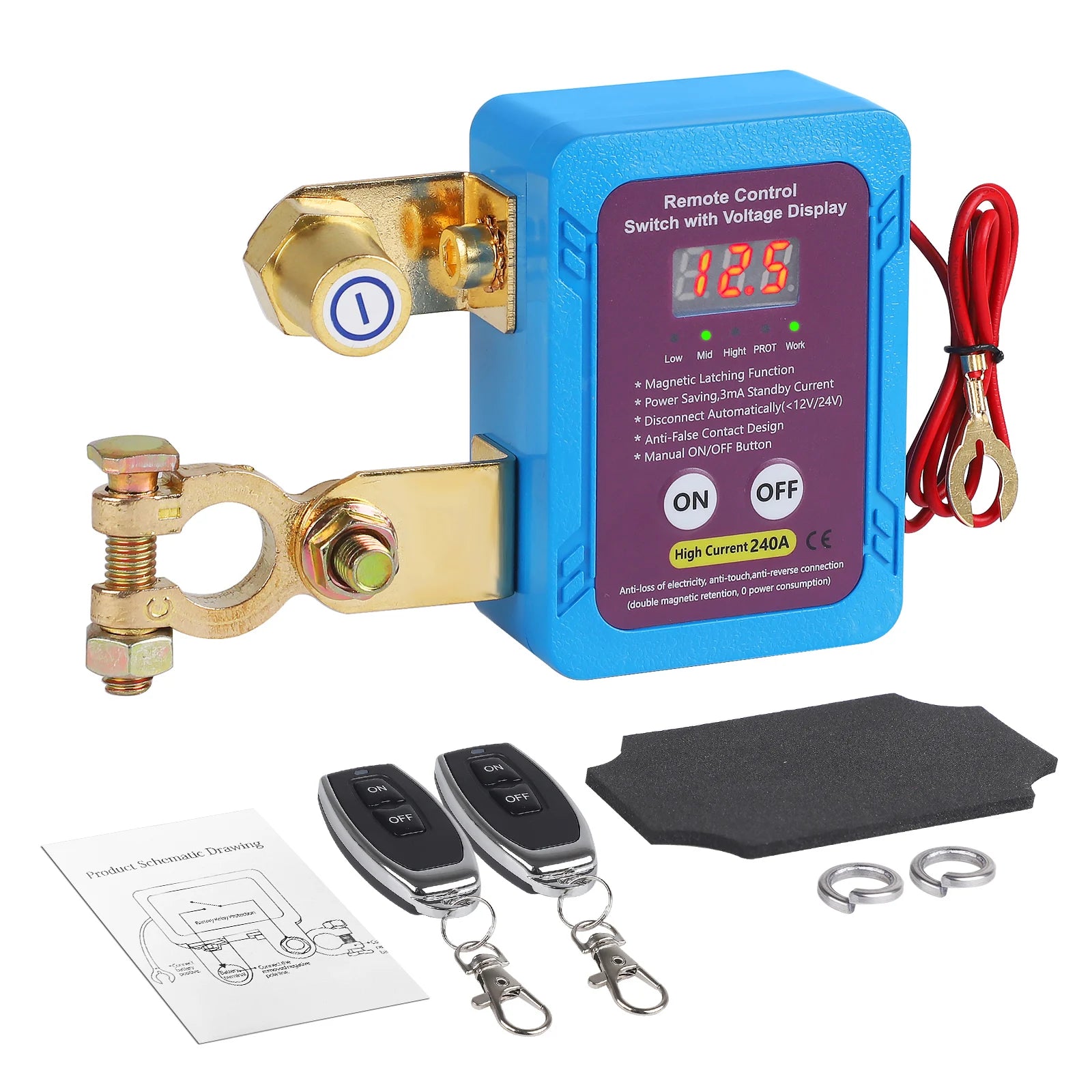

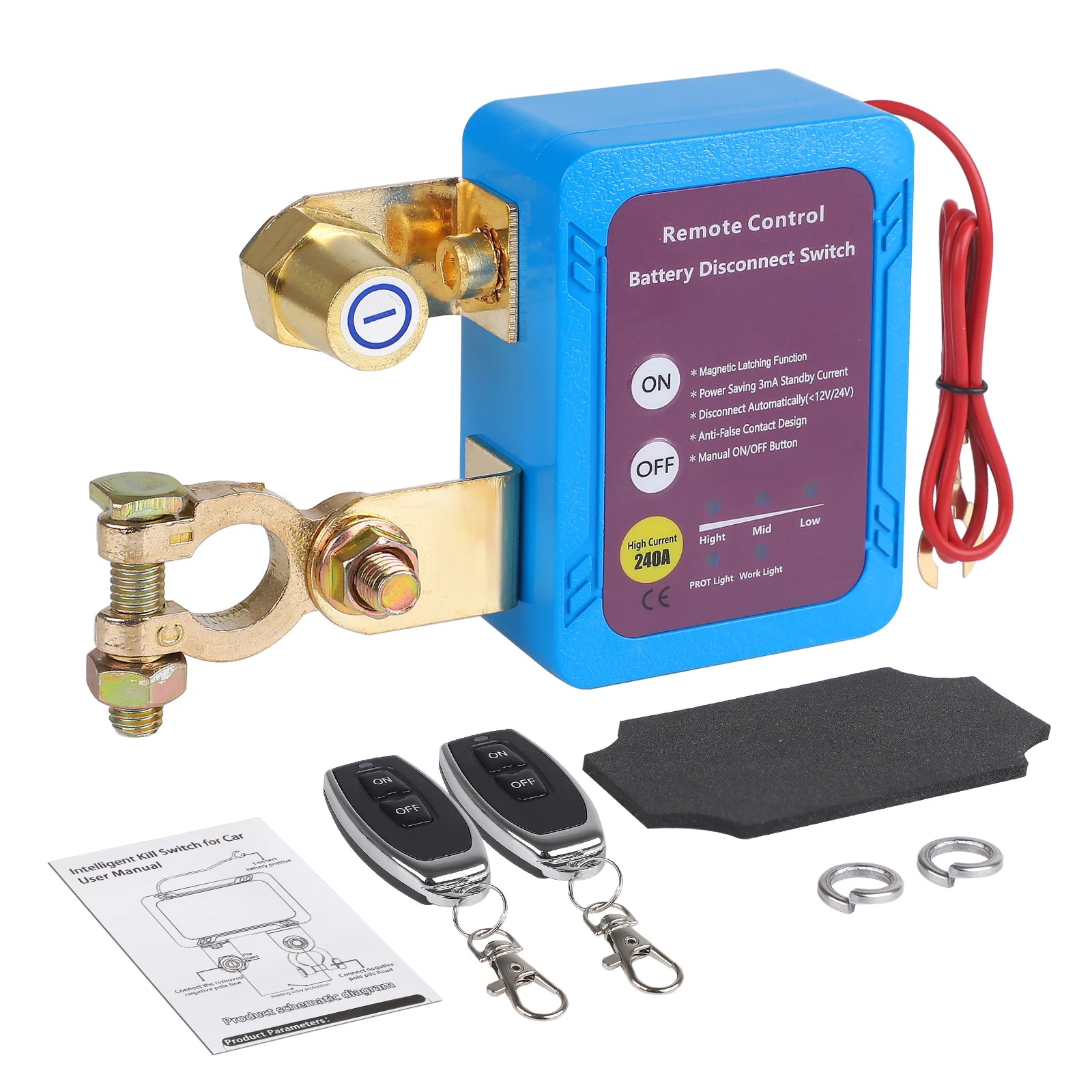

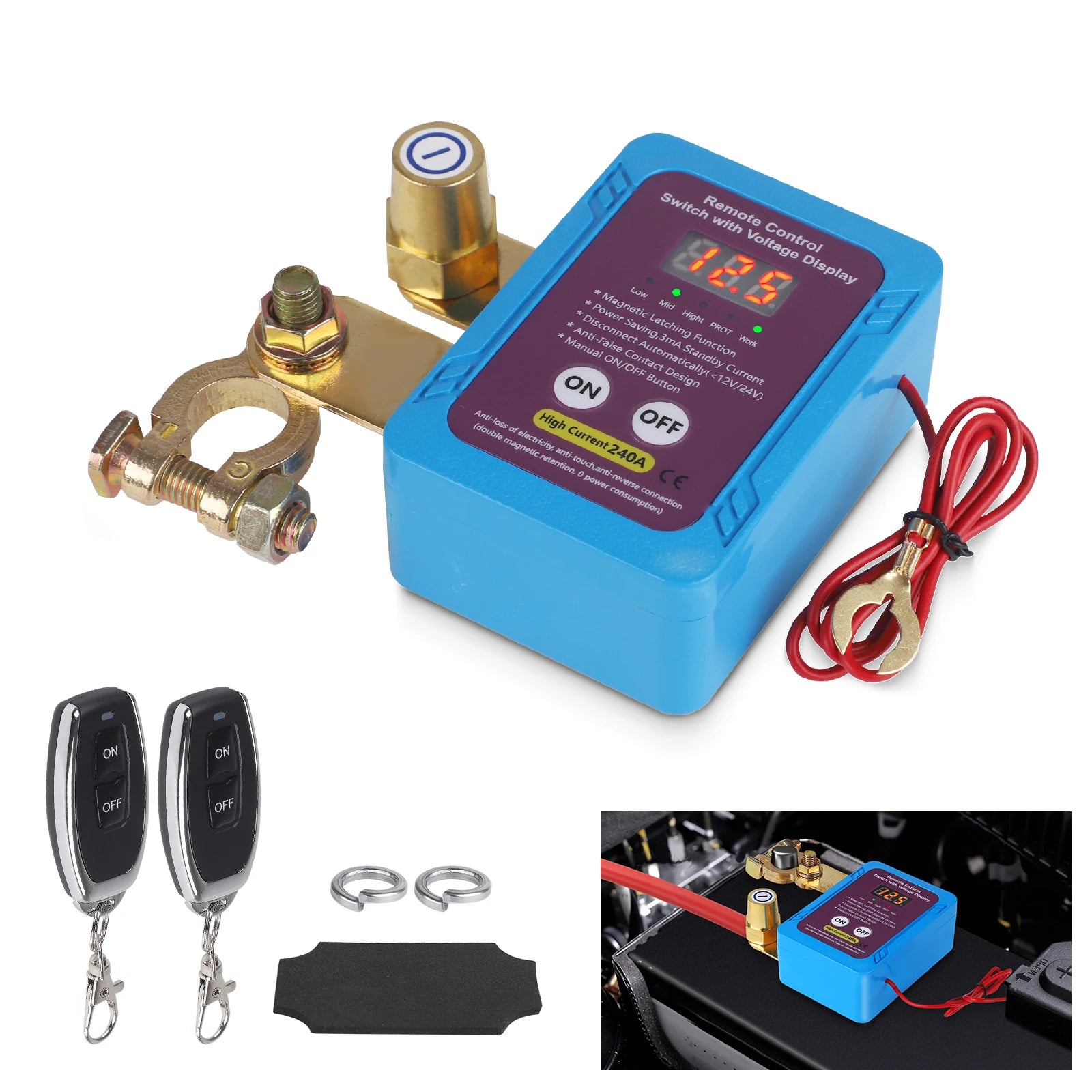

Details:
Switch * 1
Remote control * 2
Spring plate * 2
Anti wear pad * 1
Instruction manual * 1
Note:
Please double check the matching information is for reference only. If you are unsure of the item, please contact us before buying to avoid unnecessary return, thanks!
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
